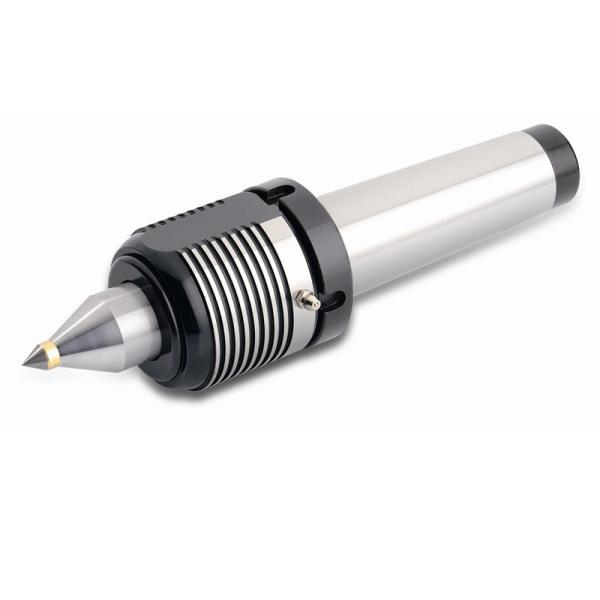

NCH-63 TUNGSTEN CARBIDE STEEL POINT HIGH PRECISION LIVE CENTER
Type: Tungsten carbide series, High precision live center
Application: CNC lathe and high speed lathe
Working Usage: Applicable for high speed and high precision turning process, and slender workpiece turning process
Structure: Combination of angular contact ball precise high speed bearing and needle bearing
Advantage: Adopted the tungsten material imported from the US, which is wear resisting, the welding depth of tungsten reach 20mm, strong rigidity, good stability.
Accessories: Y type spanner
TIR: Less than 0.002mm

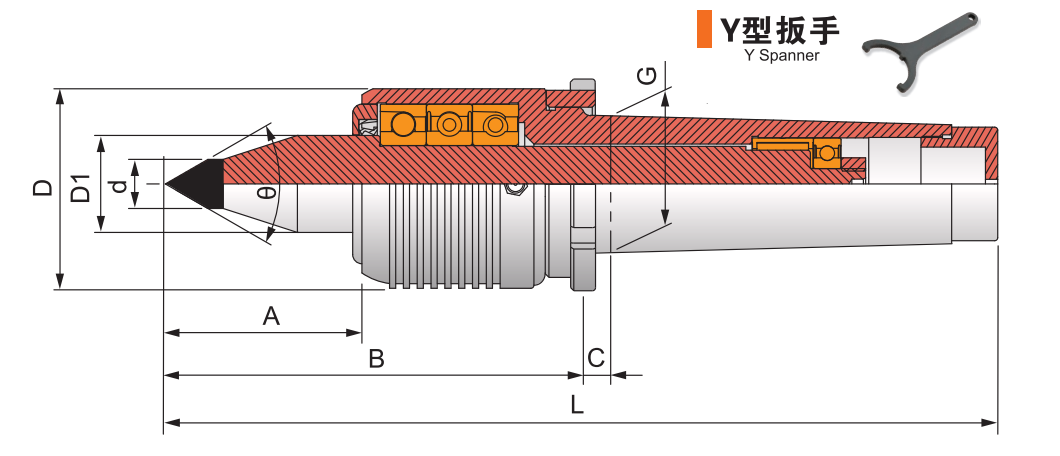

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | d | G | L | Ø | Max. RPM | Max. radial load | Max. axial thrust force |
| NCH-63-TS06-4A | 55 | 127 | 9 | 62 | 31.2 | 6 | 31.267 (MT4) | 235 | 60゜ | 1,200rpm | 2,730kg | 1,750kg |
| NCH-63-TS08-4A | 55 | 127 | 9 | 62 | 31.2 | 8 | 31.267 (MT4) | 235 | 60゜ | 1,200rpm | 2,730kg | 1,750kg |
| NCH-63-TS10-4A | 55 | 127 | 9 | 62 | 31.2 | 10 | 31.267 (MT4) | 235 | 60゜ | 1,200rpm | 2,730kg | 1,750kg |
| NCH-63-TS16-4A | 55 | 127 | 9 | 62 | 31.2 | 16 | 31.267 (MT4) | 235 | 60゜ | 1,200rpm | 2,730kg | 1,750kg |
| NCH-63-TS06-5A | 55 | 127 | 9 | 62 | 31.2 | 6 | 44.399 (MT5) | 262 | 60゜ | 1,200rpm | 2,730kg | 1,750kg |
| NCH-63-TS08-5A | 55 | 127 | 9 | 62 | 31.2 | 8 | 44.399 (MT5) | 262 | 60゜ | 1,200rpm | 2,730kg | 1,750kg |
| NCH-63-TS10-5A | 55 | 127 | 9 | 62 | 31.2 | 10 | 44.399 (MT5) | 262 | 60゜ | 1,200rpm | 2,730kg | 1,750kg |
| NCH-63-TS16-5A | 55 | 127 | 9 | 62 | 31.2 | 16 | 44.399 (MT5) | 262 | 60゜ | 1,200rpm | 2,730kg | 1,750kg |
REMARKS
1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks
2, if "A" is behind the center model name,it denotes a draw-off nut attached.
3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
