SE 3 jaw strong scroll chuck A1 direct mounting 2 piece jaws

Name: SE 3 jaw strong scroll chuck A1 direct mounting 2 piece jaws
Brand: NTH Cooperated Brand
Price: 1 USD

Brand Name : NTH Cooperated Brand

Model Number : SE-4,SE-6,SE-7,

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : T/T, Western Union

Delivery Time : 3 work days

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Certification : CE

Product name : 3 jaw strong scroll chuck A1 direct mounting 2 piece jaws

Material : Cast steel

Usage : fixture/Gripping

Feature : High precision/Stable/High quality

Size : Refer to the specification

Service : ODM/OEM is accpetable

Contact Now

3 jaw strong scroll chuck A1 direct mounting 2 piece jaws
SE types are specially meet for drilling*endmilling*tapping or grinding in tool grinders.
Huge bore diameter design for wider application of bar workpieces.
SE type feature gripping for thin tube and high roundness accuracy.
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.

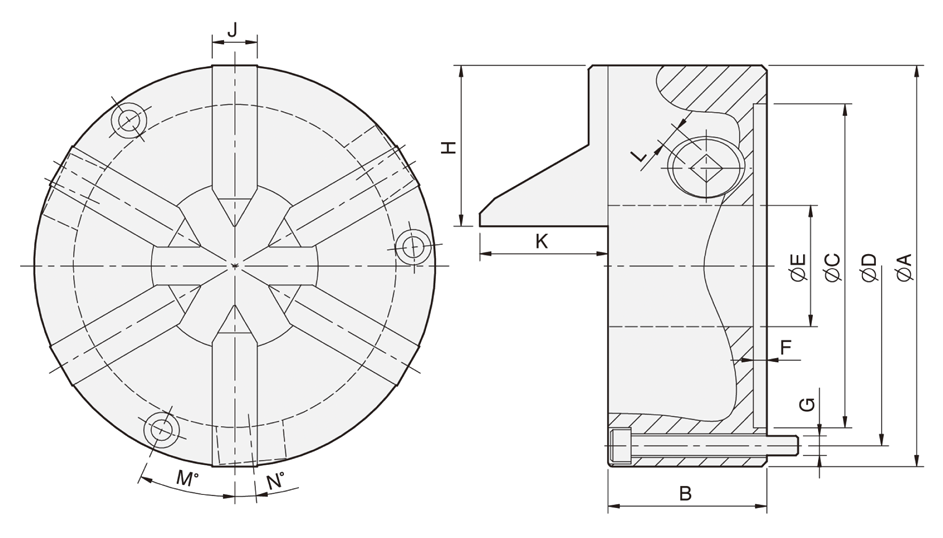

SE 3 jaw strong scroll chuck A1 direct mounting 2 piece jaws
UNIT : mm

NO	A	B	C	D	E	F	G	H	J	K	L	M	N	Handle Torque (kgf‧m)	Grip Force (kgf)	Max. Speed (r.p.m.)	N.W. (kg)	Moment Of Inertia I(kg‧m2 )	Gripping Range O.D. -I.D.
NO	A	B	C	D	E	F	G	H	J	K	L	M	N	Handle Torque (kgf‧m)	Grip Force (kgf)	Max. Speed (r.p.m.)	N.W. (kg)	Moment Of Inertia I(kg‧m2 )	Gripping Range O.D. -I.D.
SE-4	112	66	80	95	32	4.8	3-M8	45	14	39.7	8	30	6.5	1.6	440	1200	4	-	Ø2-Ø32
SE-6	165	67	130	147	51	5.5	3-M8	66.5	19	40.7	10	23.3	6.2	2.8	660	1200	9	0.03	Ø3-Ø51
SE-7	192	76.5	155	172	80	5.5	3-M10	77	21.5	61.5	11	24	5.3	3.6	850	1000	14	0.06	Ø3-Ø81
